HCM385B cost-effective 3D electronic compass. With Hard And Soft Magnetic Calibration

Name: HCM385B costeffective 3D electronic compass With Hard And Soft Magnetic Calibration
Brand: RION
Price: 445.00 USD

Quality HCM385B cost-effective 3D electronic compass. With Hard And Soft Magnetic Calibration for sale

Brand Name : RION

Model Number : HCM385B-485

Certification : CE, ISO

Place of Origin : Guangdong, China

MOQ : 1

Price : $445.00/Units

Payment Terms : T/T, Paypal

Supply Ability : 1000 Unit/Units per Month compass sensor are avaliable

Delivery Time : 7 days for samples

Packaging Details : 1pcs compass sensor in each box with safe sponge inside , 100pcs/ctn

Usage : heading finder

Theory : magneitc heading finder

Output : RS485

Best heading accuracy : 0.5deg

Pitch range : +/-85deg

weight : 130g

output frequency : 20Hz

Production : IP67

Contact Now

HCM385B cost-effective 3D electronic compass. With Hard And Soft Magnetic Calibration

Products Desc.

HCM380B/HCM385B-MP is a cost-effective 3D electronic compass. It adopts 24-point calibration method, which has stronger anti-interference and easy operation, and uses high-precision accelerometer for tilt compensation, so that it can provide high-precision heading information at any tool surface at roll within ±180 °For fixed interference, it can still provide high-precision measurement data, RS232, RS485, TTL multiple communication interface methods are optional.

The product integrates a three-axis magnetometer and a three-axis accelerometer, with high resolution and strong anti-noise capability. It is a high-performance, high-stability product with small size and low power consumption; It is widely used in many fields such as handheld devices, mobile devices, antenna stabilization, vehicles, and system integration. The product can be ordered with a sealed package or a circuit board.

Application :

★ Marine Navigation Mapping

★ Infrared Imager

★ ROV Underwater Robot Navigation

★ GPS Integrated Navigation

★ Oceanographic Tester

★ Map Complementary Plotter

★ Antenna Servo Control

Main Feature

★ Heading Accuracy: 0.5°

★ Roll Measure Range:±180°

★ Tilt Resolution: 0.1°

★ Tilt Accuracy: <0.2°(Full Range)

★ Working Temp.: -40℃~+85℃

★ Size : L57×W49×H25.5mm

★ With Hard And Soft Magnetic Calibration

★ RS232/RS485/TTL Output

HCM380B/HCM385B-MP PARAMETERS
Heading	Best heading Accuracy	0.5°
Heading	Resolution	0.1°
Tilt	Pitch accuracy	0.1°<15°(Measure Range)
		0.1°<30°(Measure Range)
		0.1°<60°(Measure Range)
		0.2°<85°(Measure Range)
	Pitch range	±85°
	Roll accuracy	0.1°<15°(Measure Range)
		0.1°<30°(Measure Range)
		0.1°<60°(Measure Range)
		0.2°<180°(Measure Range)
	Roll range	±180°
	Resolution	0.1°
Calibration	Hard Magnetic Calibration	Available
	Soft Magnetic Calibration	Available
	Magnetic Filed Interference Calibration Method	24 calibration points

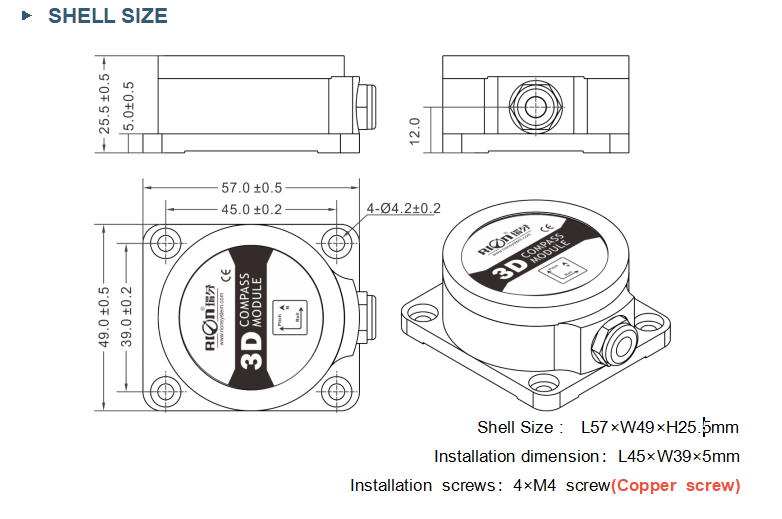

physical properties	Dimension	L57×W49×H25.5mm
	Weight	130g(not include cable)
	RS232/RS485/TTL	Direct lead cable
Interface features	Start Delay	<50ms
	Max Output Rate	20Hz/s
	Communication Rate	2400~115200baud
	Output Format	Binary High Performance Protocol
Power	Power Voltage	DC+5V
	Current(Max)	30mA
	Ideal Current	26mA
	Sleep Mode	TBD
Environment	Working Temp.	-40℃～+85℃
	Storage Temp.	-40℃～+85℃
	Anti-Shock Performance	100g
Protection	IP67
Electromagnetic Compatibility	According to EN61000 and GBT17626
MTBF	≥98000 Hour/Time
Insulation Resistance	≥100 MΩ
Anit-Impact	100g@11ms, Axial Direction (Half Sinusoid)
Anti--Shock	10grms,10～1000Hz

HCM380B single board cable wire connection :

Cable Color

Definition

BLACK

RED

YELLOW

GREEN

GND

Power negative

DC 5V

Power positive

TTL/RS232(RXD)

Or RS485(D-)

TTL/RS232(TXD)

Or RS485(D+)
